This feature is in beta testing. We would like to hear to your comments or suggestions. Please send us a message via Chat on the app or send an email to firstname.lastname@example.org.
What is a Custom Header?
This special Geppetto module is a custom (or customizable) header that allows you to decide what signal you want on each pin of the connector. These new modules are labeled “Custom” on the outline of the module in the Geppetto library.
How to use Custom Header?
Step 1. Find the Custom Header module
Look for the custom header module you want to use under the Header Category. Below are the different options current available. They are indicated with the word, “CUSTOM” on the module layout.
Step 2. Drag the Custom Header module on the board.

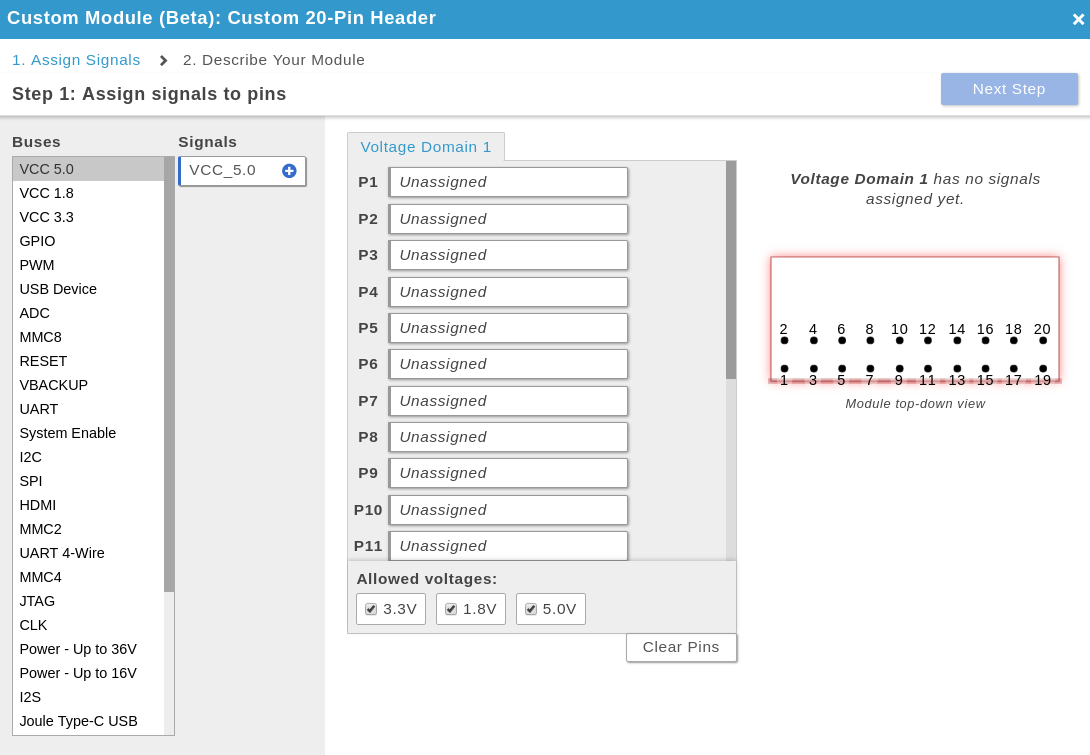

Once a custom header is on the board, a window in the app will open to show you the available buses and signals which you can drag on to each pin.
Check the different signals available depending on how many pins is available. Example below is a 3-Pin Terminal Block VS 20-Pin Header:
Step 3. Select Buses and add Signals
When you’re happy with the signals on each pin, click “Next Step”.
Step 4. Enter the name and describe your module.
Make sure your Module Name is useful and descriptive.
Step 5. Click “Create Module”.
There you go! Your custom header is now on your board.
Where to find your headers?

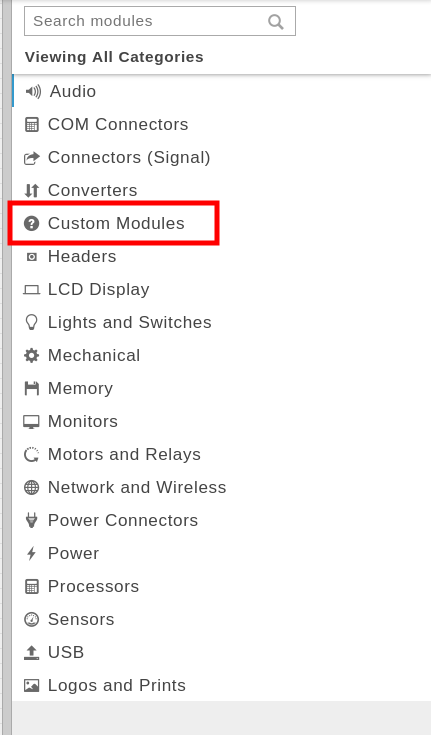

When you saved a custom header a new category will appear, Custom Modules. This will contain saved custom header that you own.
A couple things to note:
1. You can’t share your modules to other users.
2. You can add as many of your saved custom headers you need on the board.
